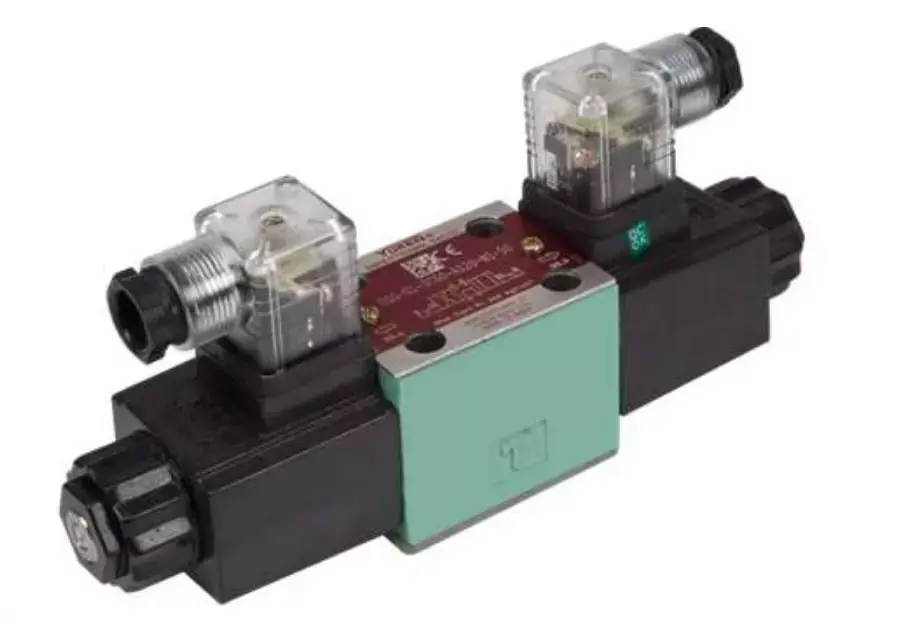

Direction control valve -DSG-01-3C4-A120 make Yuken India
Directional Control Valves have an active ball valve seat that is recessed into the body, ensuring positive sealing regardless of the size of the fluid or object passing through it. The solenoid-operated directional valve prevents contact between the spool and the seat, which reduces noise while accelerating spool changeover.
The optimum valve for any system can be utilized since many spool types and various solenoids are all available, along with other optional functions.
The Solenoid operated directional valve comes with two basic models:
- Standard type-Useable at high pressure, high flow [315Kgf/cm2 ,63L/min.]
- Shockless type-which greatly reduces noise, which is a result of spool changeover and vibration in pipes.
- Price – INR. 2899 + 18% GST
Voltage | 110 V AC |
Model No | DSG-01-3C4 AC |
Product Sub Type | Electrical operated |
Series | DSG-01 (CETOP 3) |
Type of Product | Directional Control Valve |
Frequency | 50-60Hz |
Valve Type | Standard |
No. of Valve Positions | 3 |
Power Source Type | AC/DC |
Country of Origin | India |
Name of Inventory holder | Usemyin |
